KSTAR 6KVA/48V Hybrid Inverter

Overview

The KSTAR 6KVA/48V Hybrid Inverter combines solar charging, AC input management, and backup power output into a single integrated energy solution. Designed for off-grid and hybrid solar systems, the inverter supports 48V battery configurations and high-voltage solar panel input for efficient energy utilization.

Its compact wall-mount design, integrated display controls, multiple communication interfaces, and durable metal enclosure make it suitable for homes, offices, shops, warehouses, and commercial energy systems.

Stanificent Global Technologies Ltd supplies KSTAR solar power products in Benin City, Edo State, with nationwide availability and delivery across Nigeria including Lagos, Abuja, Port Harcourt, Kano, Calabar, Warri, Asaba, Sapele, Agbor, Auchi, Ekpoma, Uromi, and surrounding regions.

Features

Hybrid Solar Power Functionality

The inverter supports hybrid energy operation by combining solar power, battery storage, and AC utility charging within one system.

High Power Output

With a visible rated power output of 6000W and 6000VA, the system is designed for demanding residential and commercial energy applications.

High PV Input Capacity

The inverter supports:

• Maximum PV input power: 6700W
• Maximum PV input voltage: 500V DC
• MPPT voltage range: 120V DC – 450V DC

48V Battery System Support

Built for 48V battery systems with visible specifications showing:

• Battery rated voltage: 48V DC
• Maximum charge current: 120A DC
• Maximum discharge current: 139A DC

Multiple Communication Interfaces

Visible communication interfaces include:

• RS232
• USB
• RS485/CAN
• WiFi connectivity

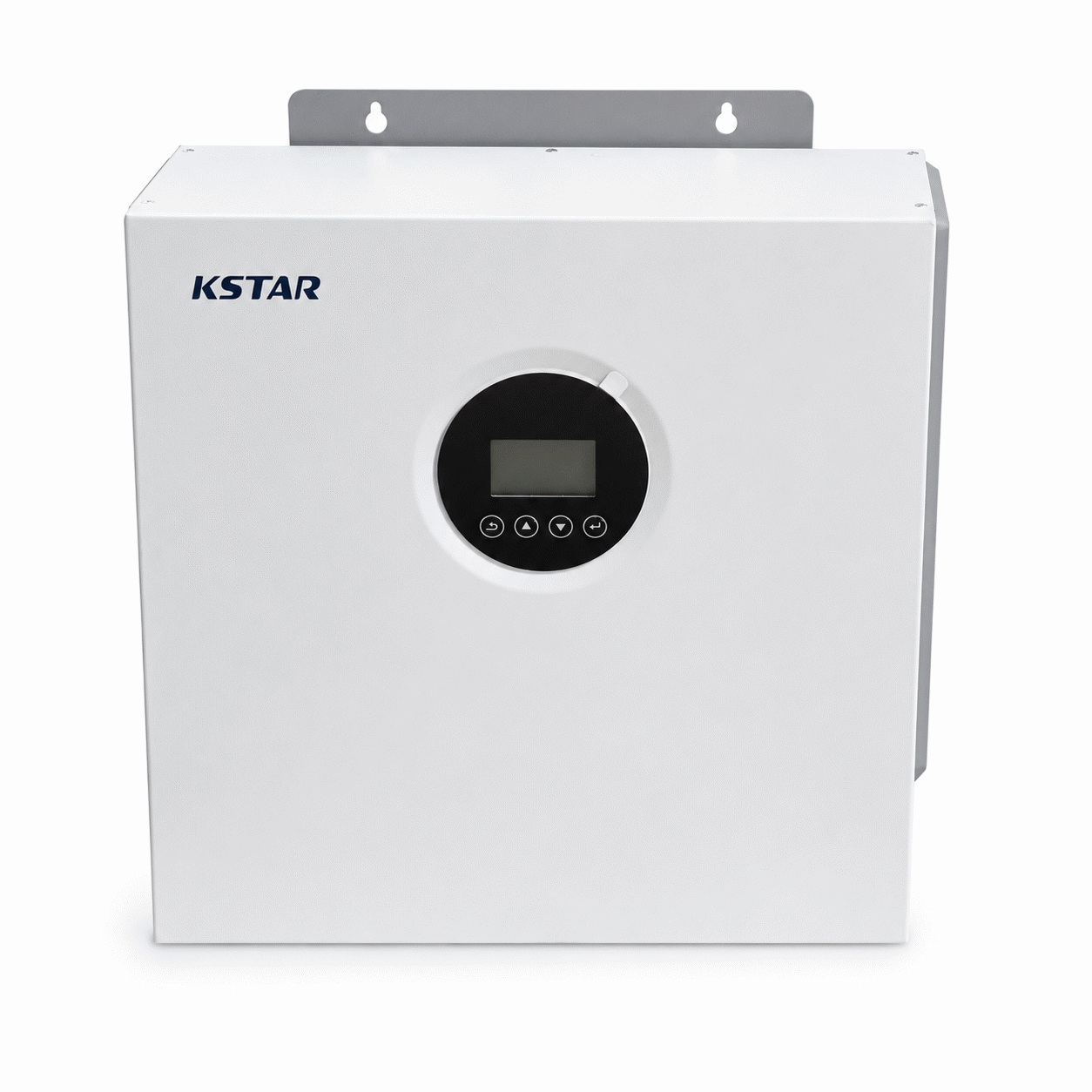

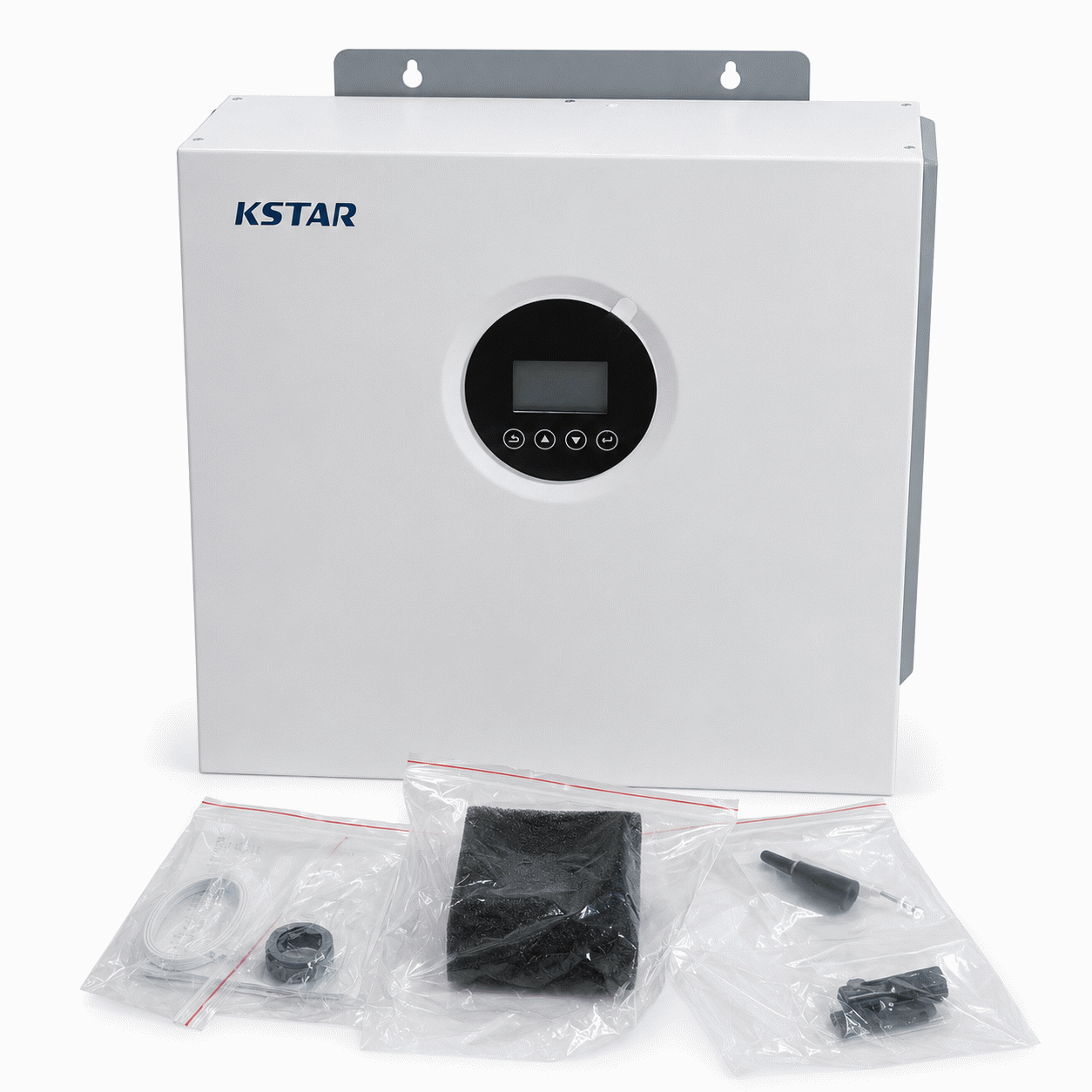

Wall-Mount Design

The compact wall-mount metal enclosure helps optimize installation space while maintaining a professional and durable appearance.

Benefits

• Helps reduce dependence on unstable grid electricity
• Supports solar energy storage and backup power usage
• Suitable for homes, offices, shops, and commercial environments
• Designed for high-capacity solar applications
• Supports efficient solar charging and energy management
• Helps improve energy availability during power outages
• Suitable for Nigerian solar energy conditions and backup power demands
• Compact wall-mounted structure helps save installation space

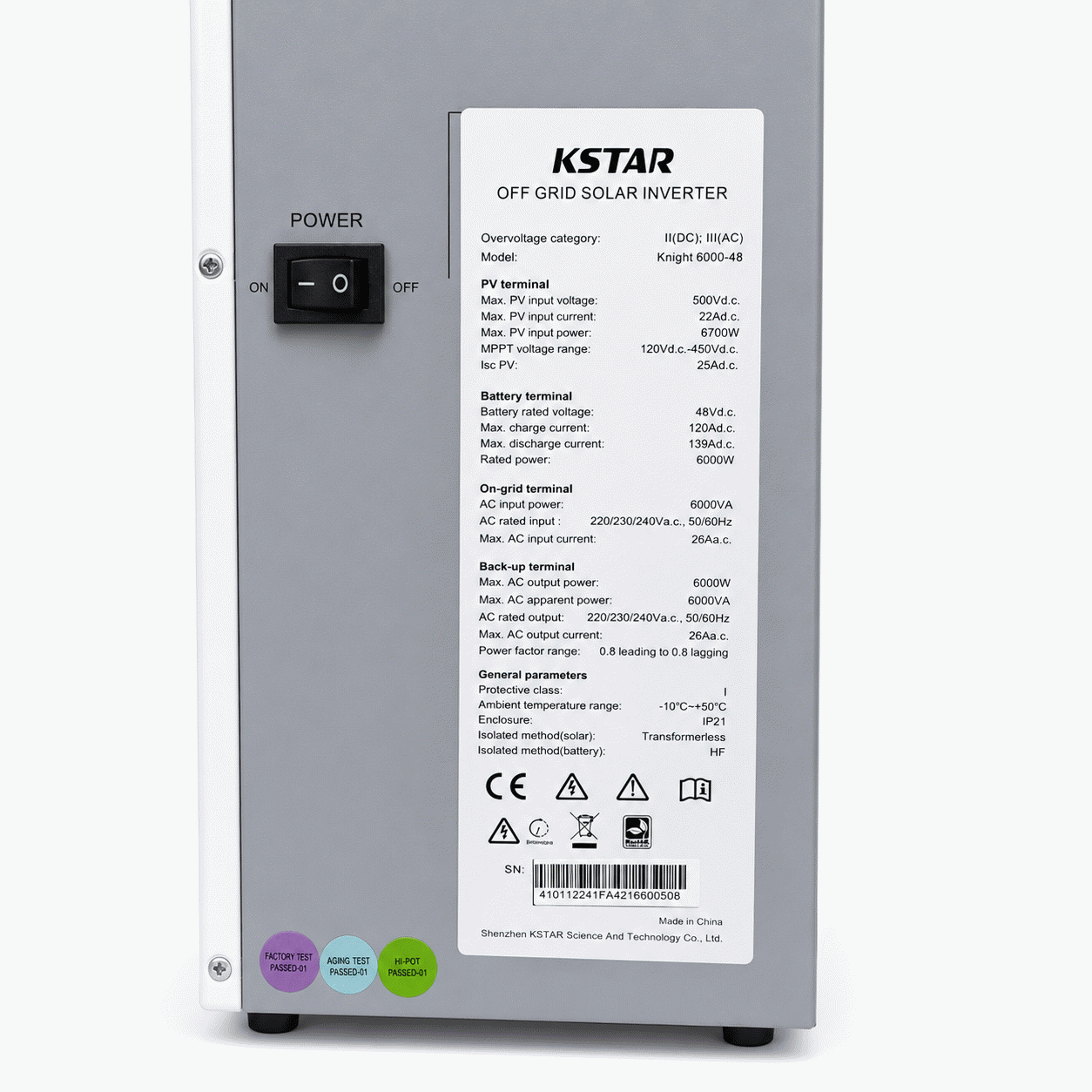

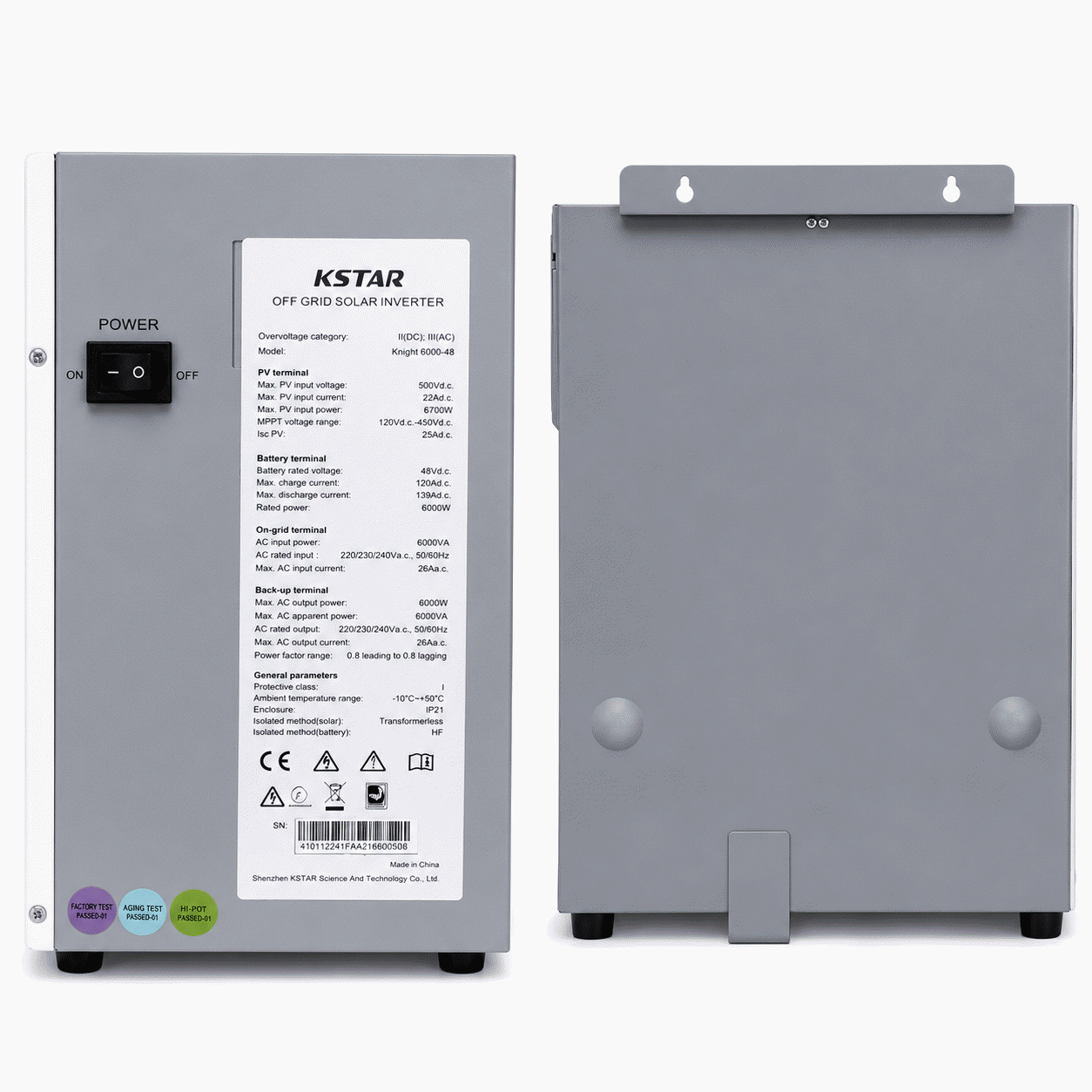

Technical Specifications

Product Information

• Brand: KSTAR
• Product Type: Off Grid Solar Inverter
• Model: Knight 6000-48
• Title: KSTAR 6KVA/48V Hybrid Inverter

PV Terminal Specifications

• Maximum PV input voltage: 500V DC
• Maximum PV input current: 22A DC
• Maximum PV input power: 6700W
• MPPT voltage range: 120V DC – 450V DC
• Isc PV: 25A DC

Battery Terminal Specifications

• Battery rated voltage: 48V DC
• Maximum charge current: 120A DC
• Maximum discharge current: 139A DC
• Rated power: 6000W

On-Grid Terminal Specifications

• AC input power: 6000VA
• AC rated input: 220/230/240Vac, 50/60Hz
• Maximum AC input current: 26A AC

Back-Up Terminal Specifications

• Maximum AC output power: 6000W
• Maximum AC apparent power: 6000VA
• AC rated output: 220/230/240Vac, 50/60Hz
• Maximum AC output current: 26A AC
• Power factor range: 0.8 leading to 0.8 lagging

General Parameters

• Protective class: I
• Ambient temperature range: -10°C to +50°C
• Enclosure protection: IP21
• Isolated method (solar): Transformerless
• Isolated method (battery): HF

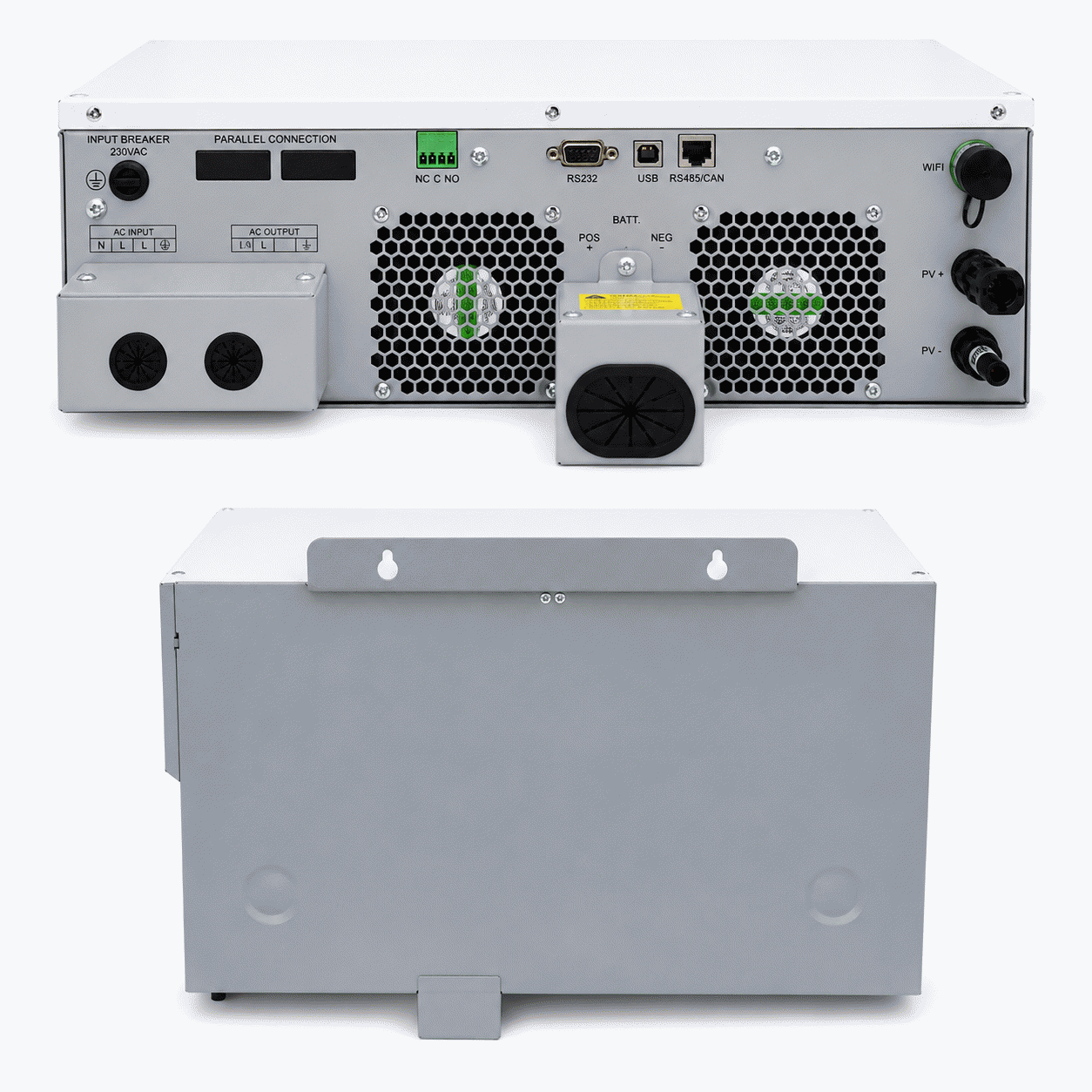

Visible Connectivity Interfaces

• RS232
• USB
• RS485/CAN
• WiFi

Key Features

• 6KVA hybrid solar inverter
• 48V battery system support
• 6000W rated output power
• 6700W maximum PV input power
• 500V DC maximum PV input voltage
• MPPT solar charging support
• RS232, USB, and RS485/CAN interfaces
• WiFi connectivity support
• Wall-mount metal enclosure
• IP21 enclosure protection
• Off-grid solar inverter design
• KSTAR Knight 6000-48 model

Benefits

• Reliable backup power support
• Suitable for solar energy storage systems
• Helps improve power availability
• Supports efficient solar energy utilization
• Designed for residential and commercial solar systems
• Compact wall-mounted structure
• Suitable for Nigerian energy conditions
• Nationwide product supply available
